PC*MILER 37

RELEASE DATE: June 21, 2023


CONTENTS


Routing enhancements

The PC*MILER routing algorithm is improved with every version release. Highlights for version 37 include:


Improved routing for 53-foot trailers

(Note: To generate 53-foot routes, set your Route Profile to Heavy Duty Semitrailer or set your vehicle's length to 53 ft.)


U.S. federal law dictates that truck/trailer combinations with width greater than or equal to 102 inches, trailer length greater than or equal to 53 feet, or both, must stay on designated State and National Network roads to the maximum extent possible.


Many states, however, provide specific exemptions to this national rule. Recent improvements to the PC*MILER routing algorithm account for these exemptions. As a result, the algorithm generates more practical routes with increased freedom to travel off the network in areas where exemptions exist.

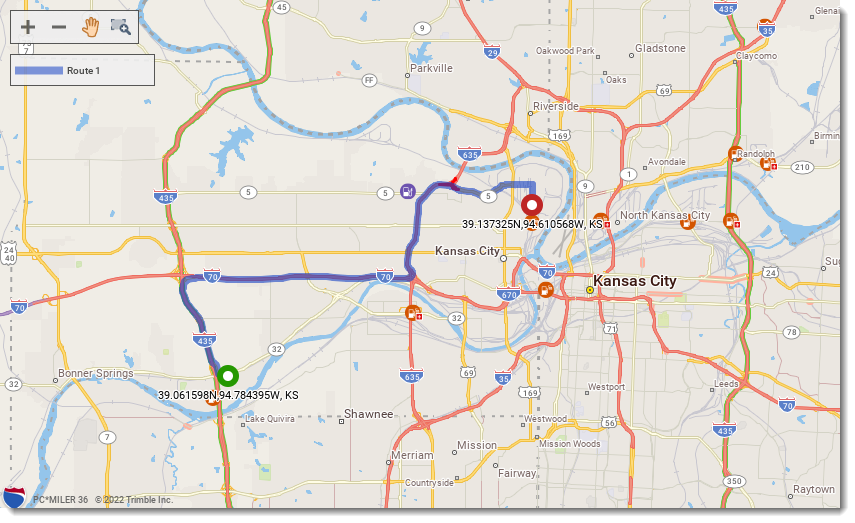

A 53-foot truck route between two locations in Kansas in PC*MILER 36


A 53-foot truck route between those same locations in PC*MILER 37 takes a more direct path


RV/Caravan routing

PC*MILER now provides safe and legal routing for RVs (also called caravans in some regions) based on the default dimensions in these charts. To calculate an RV route, set the Route Profile to RV.



Enhanced turn restrictions

In order to help prevent trucks from taking potentially unsafe U-turns, hundreds of thousands of new turn restrictions have been added to our North America map data. This results in better routing in downtown areas with complex road networks and turn structures.

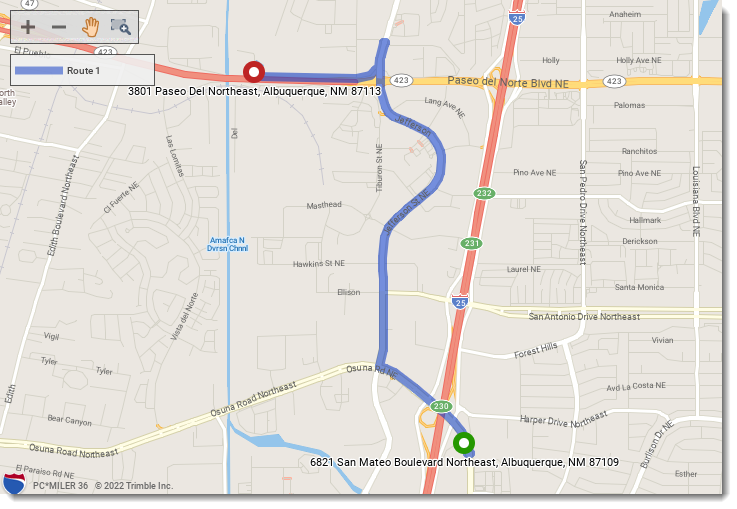

A route in Albuquerque, New Mexico in PC*MILER 36 that includes a U-turn

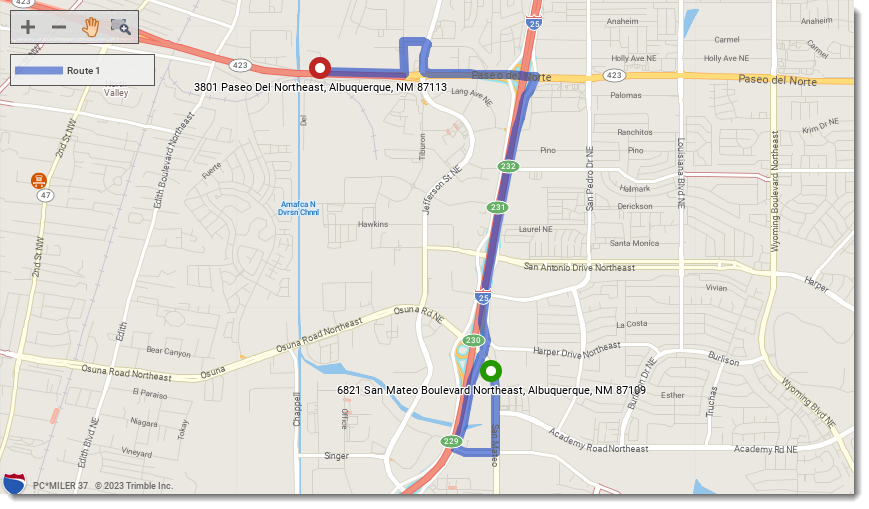

The same route in Albuquerque in PC*MILER 37 avoids U-turns


Enhanced road closure support

Several improvements were made to help ensure the routes PC*MILER selects avoid road closures and more strictly adhere to other Routing Preferences:

  • Settings such as Elevation limits, Vehicle Type restrictions, and Hazmat restrictions, as well as data such as time-based closures, now effectively act as road closures in most cases. Previously, these settings would greatly influence the route PC*MILER selects, but they would not always result in strict closures on certain roads.
  • Indefinite road closures are now avoided in routes whether or not the trip has a departure date. Previously, they were only applied when a trip had a start date.


Routing bug fixes

  • Fixed bugs around Hours of Service (HOS) off-duty time clocks to track the inactive driver’s clocks when Team Driving.
  • Fixed an issue that prevented Gate Path routing to a Site from being properly applied in some cases.


Map Data enhancements

Our road map data in North America is updated with every version release. Some highlights for version 37 include:

  • 413 new construction road projects were added
  • Over 49,000 new POIs were added to the Places Database
  • Over 43,000 new site locations were coded, including distribution centers, retail storefronts, manufacturing plant, and truck stops and service centers
  • More than 8,700 miles of new highway-level network was added to the United States
  • Truck through-travel restrictions were updated within over 850 city limits
  • More than 11,000 customer-reported issues were fixed


For more detail, please see our North America map data release notes. (This PC*MILER release includes all of the map data updates between starting at Q2.1 2022 and ending with Q2 2023.)


Installation updates

Windows Server 2022

PC*MILER 37 has been tested and verified to run on Windows Server 2022.


.NET Framework 4.8

PC*MILER 37 requires Microsoft® .NET Framework 4.8. It will be installed with PC*MILER  if it is not already installed on your machines.


Integration products

TCP/IP API update

PCMSGetFmtMatch3() was added to the APIs available via the PC*MILER TCP/IP interface.
